Demystifying Model N
Confronted with the growing challenges of climate change, HVAC equipment manufacturers and development industry stakeholders face ever-increasing demands to provide more efficient systems with lower environmental impacts. Municipal policies are evolving, setting carbon emission limits and requiring heat/energy recovery systems for energy efficiency. Markets are seeking superior HVAC products capable of maximizing space and operational efficiency, enhancing value, and introducing fresh, clean air - enabling occupants to enjoy quieter and more comfortable living environments.
With this ambitious goal at hand, our experienced team of innovators and engineers spent years researching, developing, and producing our innovative solution: Model N.
Introducing the Future of HVAC

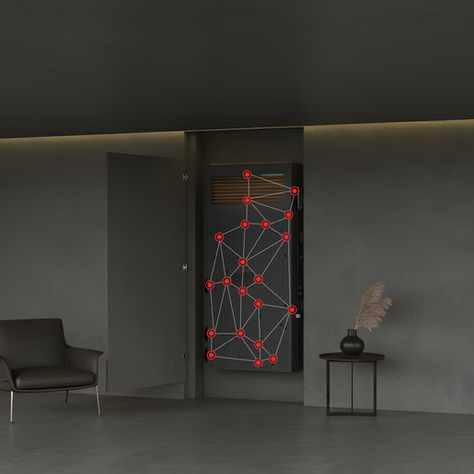

Model N is the world’s first all-in-one HVAC system in a box, providing a decentralized, fully integrated heating, air conditioning and ventilation unit in a compact 8’’ (200mm) deep design. Model N eliminates ductwork and drop ceilings, increasing floor to ceiling height and can be provided as an integral part of a prefabricated exterior/interior wall, capable of being configured to introduce outdoor air directly to the unit or via in-slab services.
Model N is built to a Passive House level, using high thermal efficiency (>85%) heat/energy recovery. It contains a booster mode for ventilation and heating/cooling, and in addition to its free cooling capabilities, provides constant ventilation. Model N meets and exceeds evolving energy and carbon policies revolving around reducing embodied carbon and enhancing building resilience.
Innovative Technologies
Fan Activated Chilled Beam technology enables Model N to operate with a high chilled water temperature of 55F (13 C) and low hot water temperature of 115F (45 C) making it an ideal temperature profile for a centralized heat pump system. Model N significantly increases the mechanical system Coefficient of Performance (COP), provides superior comfort conditions (with optional radiant cooling and heating), and utilizes 25% of the air volume compared to a conventional HVAC system.
Modulating louvers and dampers balance the pressure differential between outdoor and indoor environments, effectively addressing “stack effect”, making Model N an ideal application for high-rise buildings in any climate.
Model N’s innovative design eliminates the need for condensate drain lines, and provides a dehumidification process for outdoor air.
Model N has a sophisticated control system and sensor network to optimize operation and maximize comfort in the space. Units have integrated internet connectivity and embedded Artificial Intelligence (AI) with behavioral learning allowing Model N to adjust to occupant’s activity and respond to outdoor weather conditions. Additionally, Model N enables remote data monitoring to anticipate maintenance requirements and manage alarm events.
Model N operates on Low Voltage 24/48VDC, simplifying installation labor requirements and reducing liability and risk.
Applications
Model N is ideally suited for both new and retrofit high-rise multifamily residential, hotel buildings and dormitories. Model N can also be used for retrofitting existing high-rise hydronic buildings, eliminating the need for costly piping and insulation retrofits, making it a cost-effective approach for decarbonizing existing buildings.
Benefits
For the Planet
-
reduction of embodied carbon emissions
-
reduction of operational GHG emissions
-
reduction of Global Warming Potential
-
reduction of energy use
-
supports meeting environmental policy codes and requirements
For Occupants
-
heating, air conditioning and ventilation
-
whisper-quiet operation
-
highly efficient and optimized operation
-
monitoring of comfort, health and wellness
-
clean and filtered air
For MEP Engineers
-
complete comfort control
-
integrated controls
-
pressure independent valves included
-
elimination of condensate drain pipework
-
fully integrated HVAC system delivering fresh air to every room
For Developers
-
reduction of building height by up to 12’’ per floor
-
pro-forma optimization, (extra floor every 8 floors)
-
reduced overall building costs
-
time/cost savings in the design process
-
compliance with latest environmental codes, regulations and health & wellness trends
For Architects
-
increased floor-to-ceiling height
-
elimination of drop ceiling and ductwork
-
in-wall installation (saving floorspace)
-
in-slab services
-
aesthetic, customizable surface finishes
For Installing Contractors
-
prefabricated plug and play design minimizing labour and commissioning
-
reduced liability and risk
-
low supply voltage 24VDC
-
elimination of chilled water piping insulation
-
ease of start-up
Features
HRV / ERV VENTILATION MODULE
Primary Air Coil
Outdoor Air Fan
Free Cooling
MERV 7 / MERV 4 Filter
HRV / ERV Heat Exchanger
MERV 13 / HEPA Filter
Exhaust Air Fan
HEATING / COOLING MODULE
Fan Activated Chilled Beam
Supply Air Fan
Control Unit
Bipolar Ionization
WATER MODULE
Pump
PICV Valve - Chilled Beam
PICV Valve - Primary Air Coil
Valving Arrangement for Testing / By-Pass with Strainer
CONNECTION MODULE
Condensate Elimination System
Air / Water / Electrical Connections
Performance Data
Dimensions
